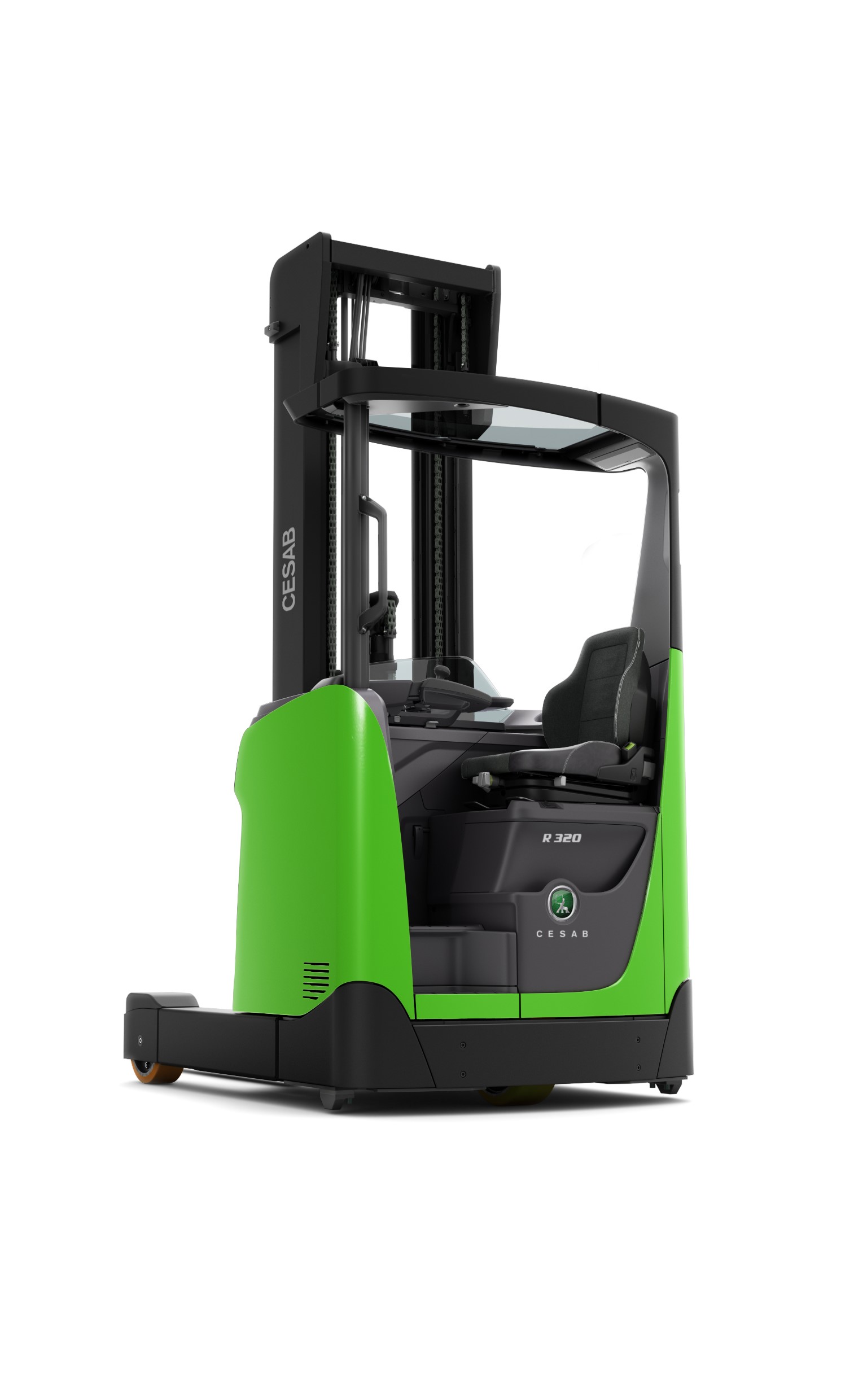

R300

High intensity reach trucks

The CESAB is the high performance truck with exceptional and unique characteristics for high-speed operations demanding maximum output. Safety, both for the driver and the load, as well as comfort are uncompromised!

The open-design overhead guard and the wide-view mast and carriage guarantee excellent all-round visibility. Optionally, a transparent roof is available to take visibility to a supplementary level. The performances of the CESAB R300 are programmable to adapt the truck to the driver’s abilities or restrictions in special areas of your site.

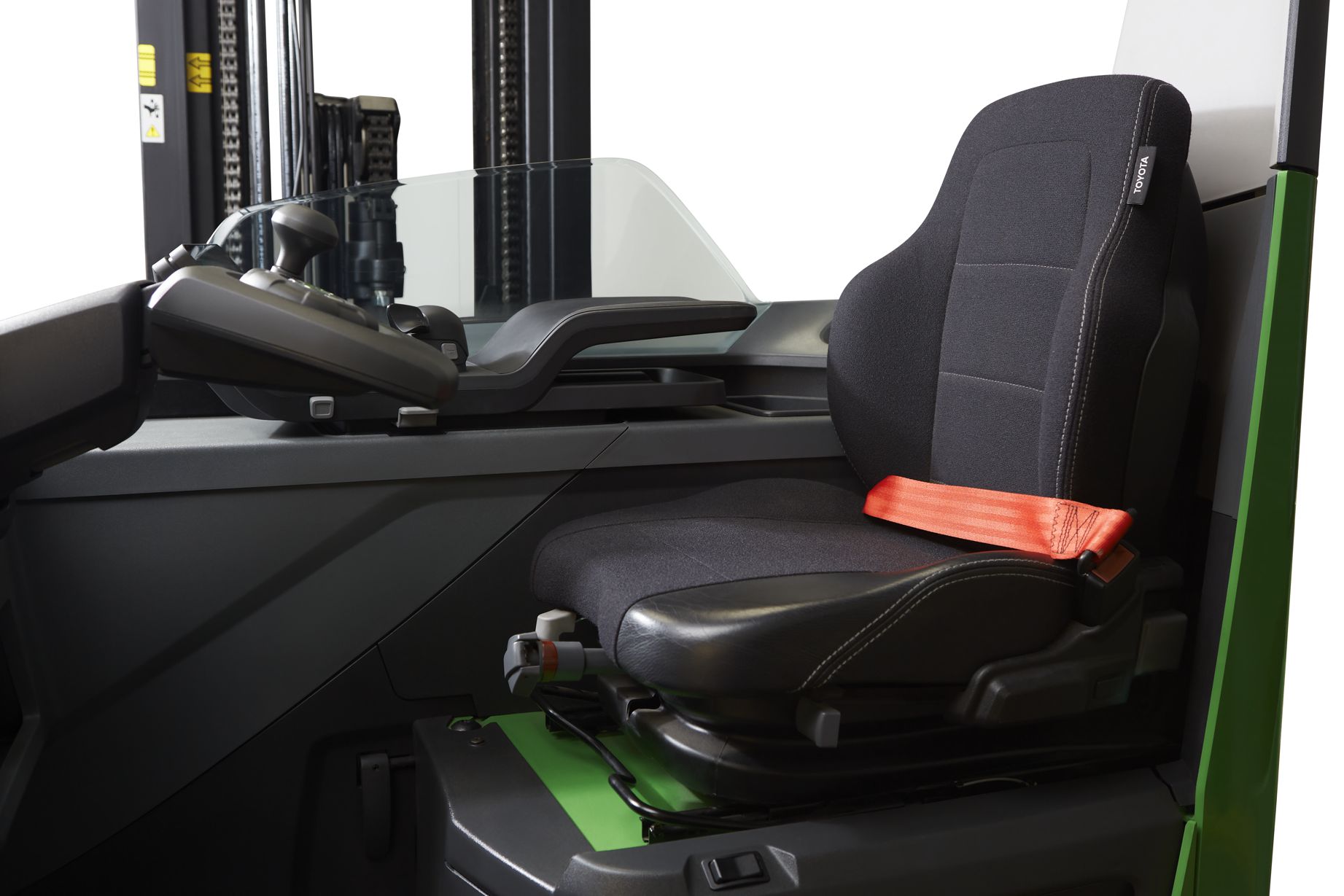

The fully adjustable cockpit, seat, console, steering column, even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary.
The 360° steering takes the operator comfort to again a higher level.

The Transition Lift Control (TLC) completely eliminates shocks while deploying the mast and allows full lifting speed from the ground to maximum lift height

The Optimised Truck Performance (OTP) feature is the standard electronic safety package that helps the driver to deploy the full performance of the CESAB R300 in a safe way. Automatic speed reduction when cornering, controlled speed, depending on the load and lift height, when reaching the mast in and out, the R300 controls it all for maximum performance and safety.

The CESAB R300 range is guaranteed to deliver outstanding productivity from the first day and for many years to come. Every aspect of every model in the range has been developed to raise productivity to new and even greater heights.

Off

Specifications

Model Code R314
Rated Capacity 1400 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4900 mm
Maximum Lift Height (h23) 11000 mm
Travel Speed with/without load 10.3/11.0 km/h
Lift Speed with/without load 0.38/0.68 m/s
Lowering Speed with/without load 0.55/0.59 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 465 - 775 Ah
Drive/Lift Motor Power 7.5/11.0 kW
Model Code R316
Rated Capacity 1600 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4900 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 10.0/11.0 km/h
Lift Speed with/without load 0.36/0.68 m/s (0,50/0,68 m/s option)
Lowering Speed with/without load 0.55/0.59 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 465 - 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)
Model Code R318
Rated Capacity 1800 kg
Operator Type Ride-on
Mast Type Triplex freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.46/0.68 m/s
Lowering Speed with/without load 0.55/0.60 m/s
Chassis Width (b1) 1270 mm
Battery Voltage/Nominal Capacity K5 48V / 620 - 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)
Model Code R320
Rated Capacity 2000 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.43/0.68 m/s
Lowering Speed with/without load 0.55/0.6 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 620 - 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)
Model Code R325
Rated Capacity 2500 kg
Operator Type Ride-on
Mast Type Triplex freelift
Lift Heights (h23) from 4850 mm
Maximum Lift Height (h23) 13000 mm
Travel Speed with/without load 11.0/11.0 km/h
Lift Speed with/without load 0.37/0.64 m/s
Lowering Speed with/without load 0.53/0.58 m/s
Chassis Width (b1) 1270 mm
Battery Voltage/Nominal Capacity K5 48V / 775 - 930 Ah
Drive/Lift Motor Power 7.5/11.0 kW (7,5 – 15 kW option)
