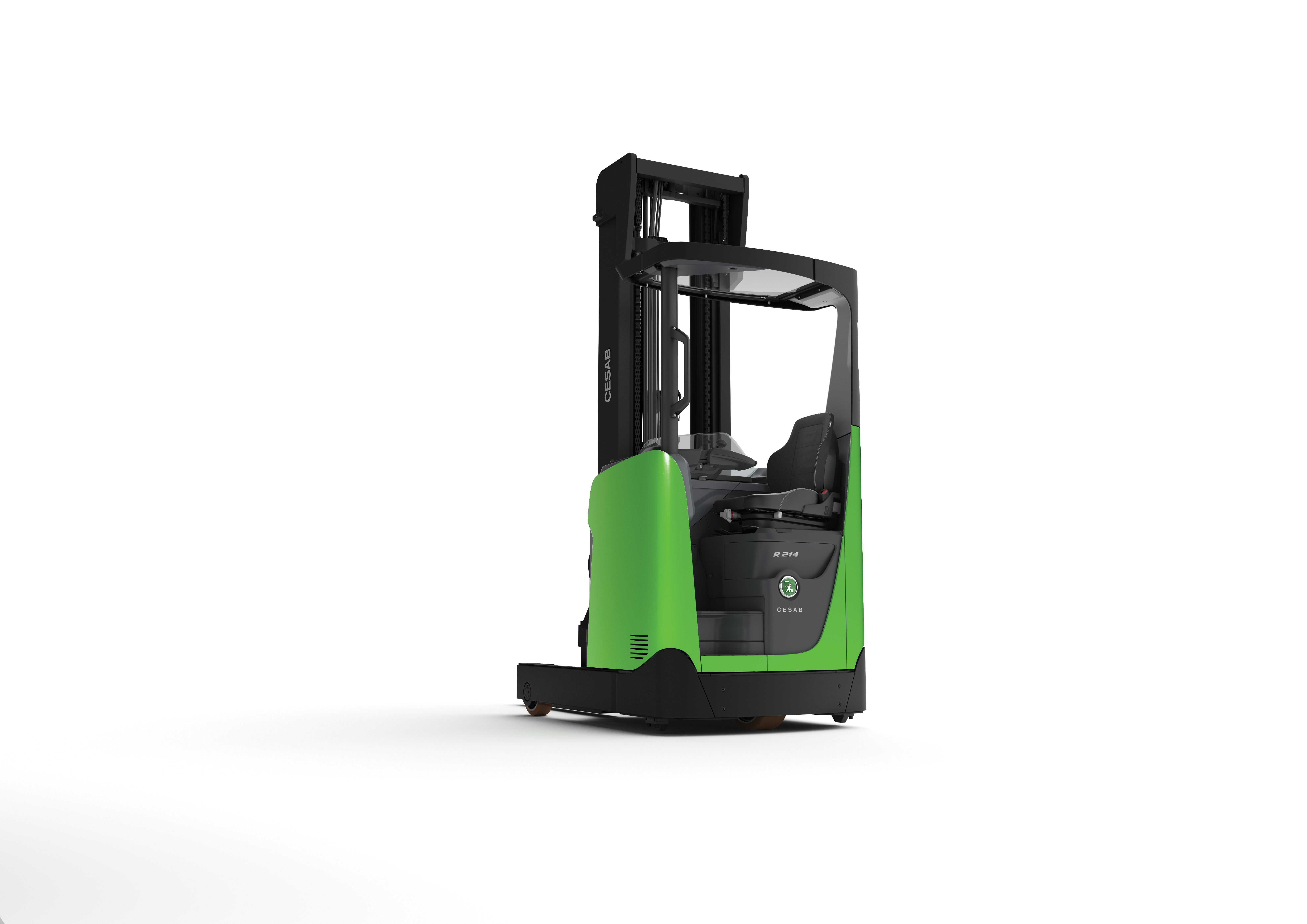

R200

Compactly designed reach trucks

The CESAB R200 is a compact and flexible reach truck. With its narrow designed chassis it is ideal for stacking in narrow and constrained spots. The R200 offers high drive and lift speeds linked to optimal comfort for the driver.

The open-design overhead guard and the wide-view mast and carriage guarantee excellent all-round visibility. The performances of the CESAB R200 are programmable to adapt the truck to the driver’s abilities or restrictions in special areas of your site

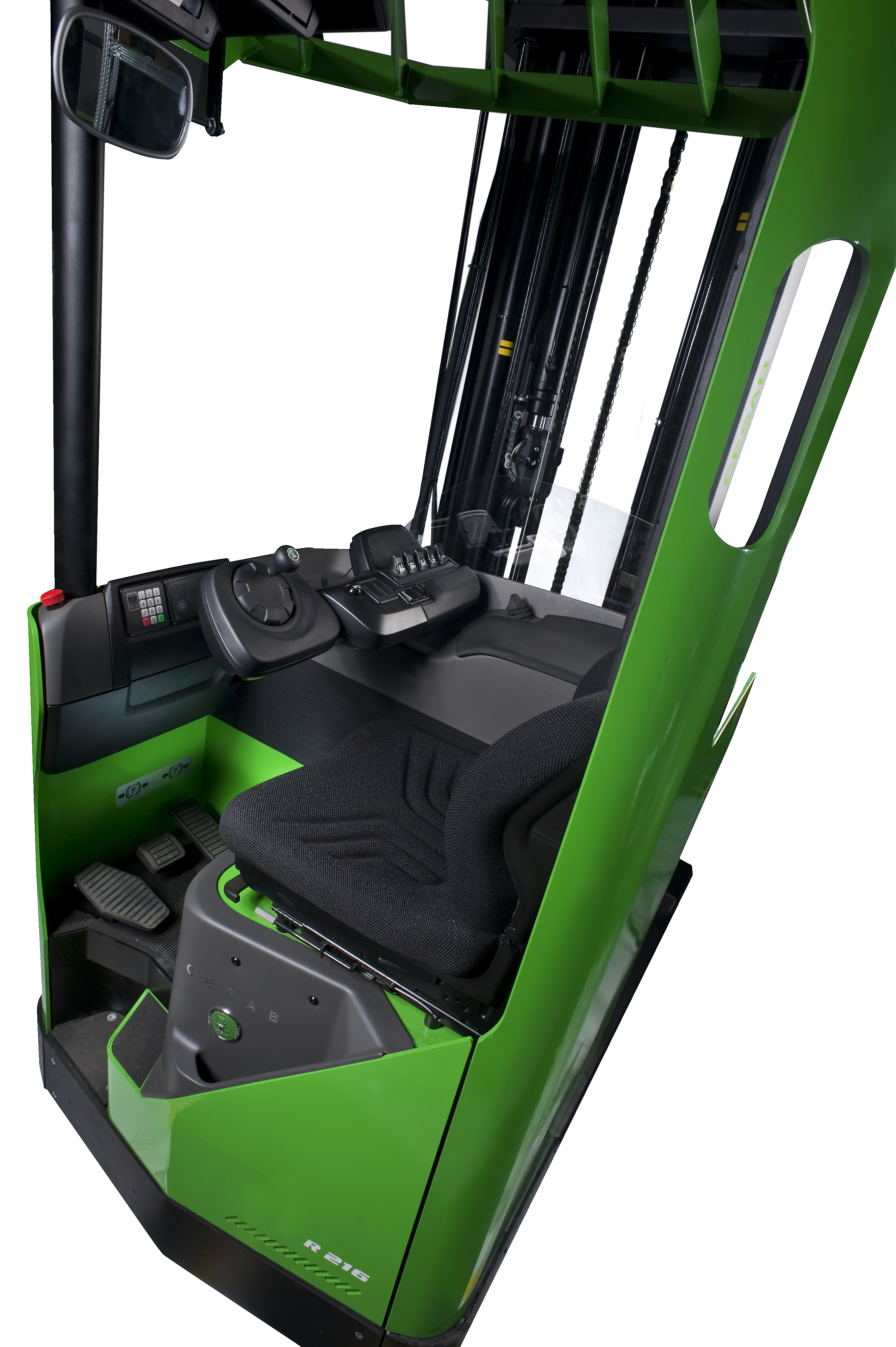

The driver is at ease with the simple and logical fingertip controls placed on the ergonomic console with integrated wrist rest. The electric steering allows effortless safe and precise manoeuvring.

The fully adjustable cockpit even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary.

The 360° steering takes the operator comfort to again a higher level.

The new CESAB R200 range was created in order to deliver exceptional productivity to materials handling operations in potentially confined workplaces.

The sleek, slim design makes it perfect for demanding situations which require high levels of productivity and applications such as block stacking and drive-in racking.

Off

Specifications

Model Code R212
Rated Capacity 1200 kg
Operator Type Ride-on
Available Mast Type* DT / DF / TF
Lift Heights (h23) from 3350 mm
Maximum Lift Height (h23) 6000 mm
Travel Speed with/without load 10/11 km/h
Lift Speed with/without load 0.29/0.42 m/s
Lowering Speed with/without load 0.47/0.47 m/s
Chassis Width (b1) 1120 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 310 - 620 Ah
Drive/Lift Motor Power 7.5/7.4 kW

* Mast Type: Duplex Tele (DT), Duplex Freelift (DF), Triplex Freelift (TF)

Model Code R214
Rated Capacity 1400 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4400 mm
Maximum Lift Height (h23) 6300 mm
Travel Speed with/without load 10/11.2 km/h
Lift Speed with/without load 0.27/0.42 m/s
Lowering Speed with/without load 0.50/0.44 m/s
Chassis Width (b1) 1120 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 310 - 620 Ah
Drive/Lift Motor Power 7.5/7.4 kW
Model Code R216
Rated Capacity 1600 kg
Operator Type Ride-on
Mast Type Triplex Freelift
Lift Heights (h23) from 4400 mm
Maximum Lift Height (h23) 8500 mm
Travel Speed with/without load 10/11.2 km/h
Lift Speed with/without load 0.25/0.42 m/s
Lowering Speed with/without load 0.50/0.44 m/s
Chassis Width (b1) 1120 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 310 - 620 Ah
Drive/Lift Motor Power 7.5/7.4 kW
