R100

Clever reacher trucks

The CESAB R100 is the easy to use and efficient truck for basic applications. The R200 offers the essential reach truck functions and is highly productive with its maximum lift height of 8.5 meters.

Designed for easy and precise control, the goods handling goes smooth and precisely resulting in high performance levels.

The driver is at ease with the simple and logical fingertip controls placed on the ergonomic console with integrated wrist rest. The electric steering allows effortless safe and precise manoeuvring.

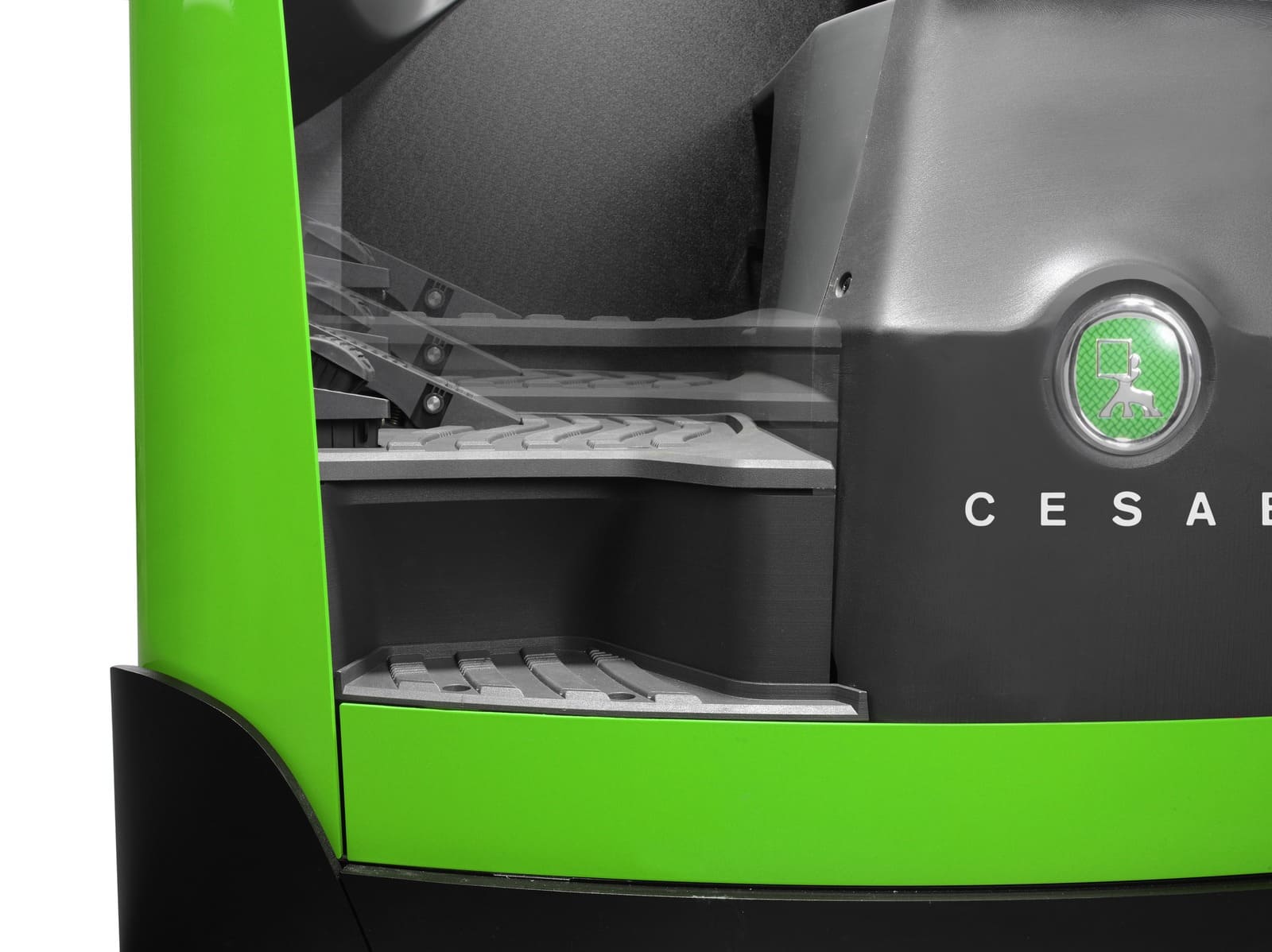

The fully adjustable cockpit even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary

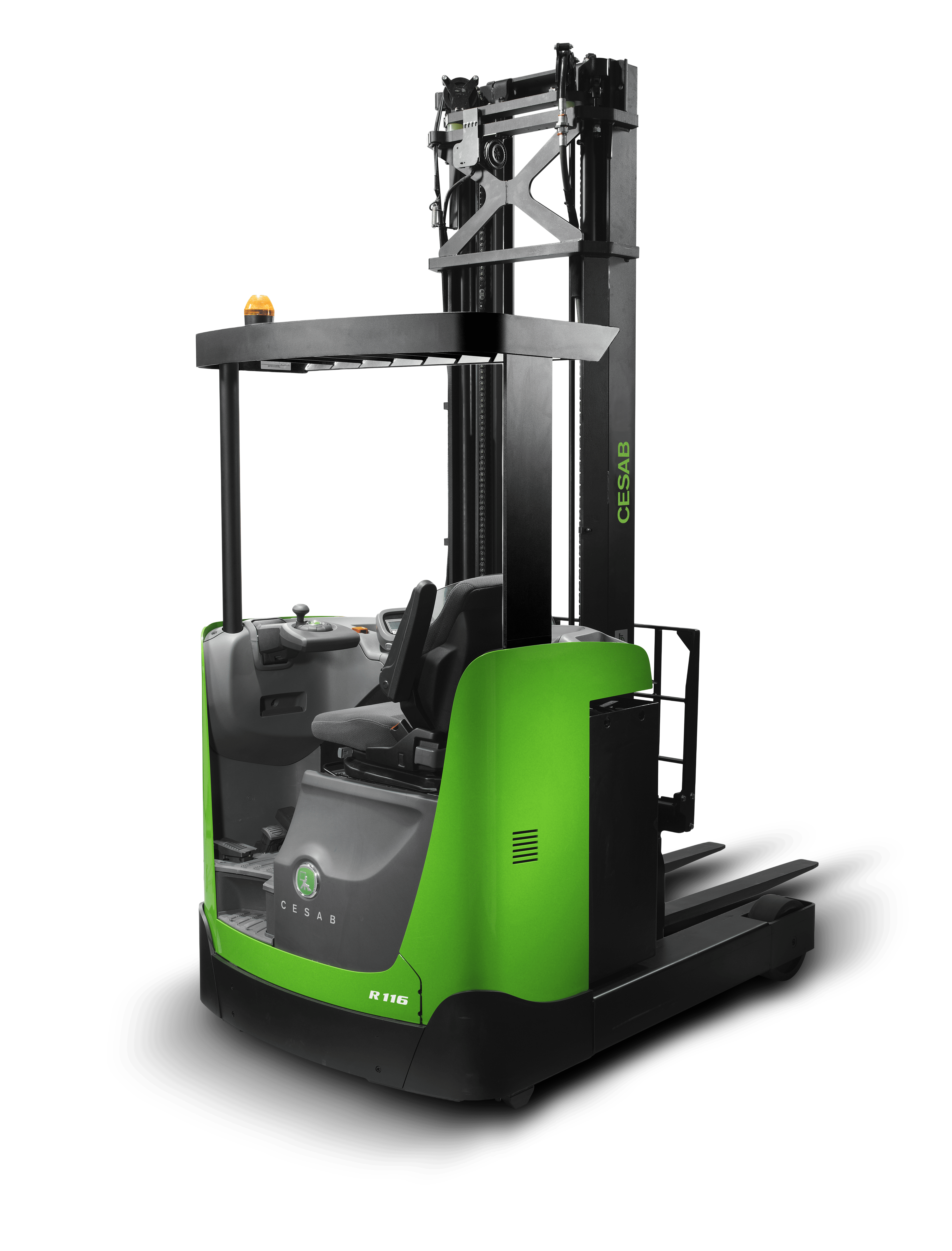

Form follows function - the CESAB R100 is a practical easy to operate reach truck which is designed to deliver high manoeuvrability, reliability and safety to materials handling operations.

Specifications

Model Code R112
Rated Capacity 1200 kg
Operator Type Ride-on
Mast Type* DT/TF
Lift Heights (h23) from 3000 mm
Maximum Lift Height (h23) 7000 mm
Travel Speed with/without load 10 km/h
Lift Speed with/without load 0.31/0.44 m/s
Lowering Speed with/without load 0.49/0.52 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 310 - 465 Ah
Drive/Lift Motor Power 5/10 kW

* Mast Type: Duplex Tele (DT), Triplex Freelift (TF)

Model Code R114
Rated Capacity 1400 kg
Operator Type Ride-on
Mast Type* DT/TF
Lift Heights (h23) from 3000 mm
Maximum Lift Height (h23) 8500 mm
Travel Speed with/without load 10 km/h
Lift Speed with/without load 0.30/0.43 m/s
Lowering Speed with/without load 0.51/0.52 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 465 - 620 Ah
Drive/Lift Motor Power 5/10 kW

* Mast Type: Duplex Tele (DT), Triplex Freelift (TF)

Model Code R116
Rated Capacity 1600 kg
Operator Type Ride-on
Mast Type* DT/TF
Lift Heights (h23) from 3000 mm
Maximum Lift Height (h23) 8500 mm
Travel Speed with/without load 10 km/h
Lift Speed with/without load 0.28/0.43 m/s
Lowering Speed with/without load 0.52/0.52 m/s
Chassis Width (b1) 1270 mm
Battery Compartments Standard / Sideways change
Battery Voltage/Nominal Capacity K5 48V / 620 Ah
Drive/Lift Motor Power 5/10 kW

* Mast Type: Duplex Tele (DT), Triplex Freelift (TF)
